Batear¶
Ultra-low-cost, edge-only acoustic drone detection on ESP32-S3 with encrypted LoRa or wired Ethernet alerting.
"Built for defense, hoping it becomes unnecessary. We believe in a world where no one needs to fear the sky."

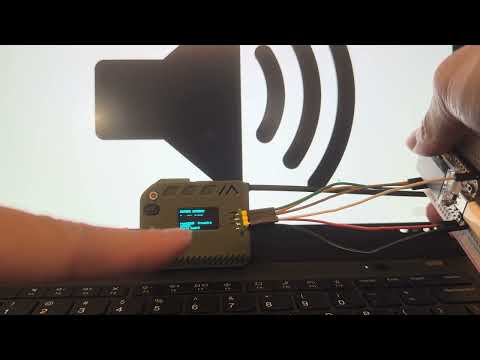

Click to watch the bench test demo
What is Batear?¶
Drones are an increasing threat to homes, farms, and communities — and effective detection has traditionally required expensive radar or camera systems. Batear changes that.
For ultra-low-cost hardware, Batear turns a tiny ESP32-S3 microcontroller and a MEMS microphone into an always-on acoustic drone detector. It runs entirely at the edge — no cloud subscription, no internet connection, no ongoing cost. Deploy one at a window, a fence line, or a rooftop and it will alert you the moment drone rotor harmonics are detected nearby.
One LoRa node firmware runs as a Detector (mic + LoRa TX), a Relay (re-transmits other nodes' packets), or a Gateway (LoRa RX + OLED + LED + MQTT) — chosen per device at flash time — and the nodes form a small mesh. Any number of gateways forward alerts to Home Assistant via MQTT with automatic device discovery. The Wired Detector is a separate build that connects directly over Ethernet, bypassing LoRa entirely.
Key Features¶
Acoustic detection — FFT harmonic signature analysis of drone rotor noise
AES-128-GCM encryption — secure LoRa communication between devices
LoRa alerting — long-range, low-power wireless alerts
Mesh relay + multiple gateways — relays extend range; several gateways give failover without duplicate HA devices
Home Assistant integration — MQTT with auto-discovery, LWT availability, per-detector topics
Edge-only — no cloud, no internet, no subscription
Ultra-low-cost — under $20 per node with off-the-shelf parts
Wired option — Ethernet/PoE variant for fixed installations (no LoRa needed)
One LoRa firmware — Detector, Relay or Gateway is a per-device setting; Wired Detector is its own build
Quick Start¶
-
Web Flasher
Flash firmware from your browser — no toolchain required
-
Hardware Setup
Get the parts list and wiring diagram
-
Build & Flash
Build the firmware and flash your device
-
Configuration
Set up encryption keys, frequencies, and device IDs
-
How It Works
Understand the FFT harmonic detection algorithm
3D-Printable Case¶
Give your node a proper home. This community-designed enclosure for the Heltec WiFi LoRa 32 V3 by @nelson8588x2 has a window for the OLED and access to the buttons — download the model and print your own:
